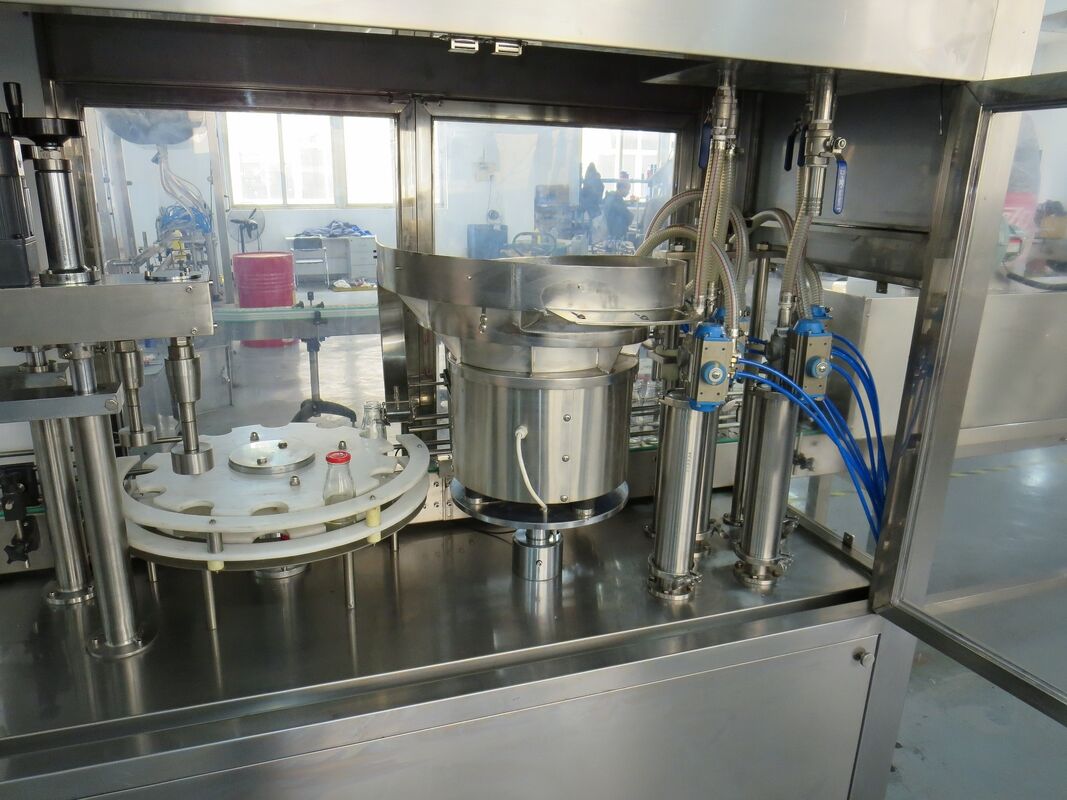

YIMUPACK YMF4C1 Integrated Automatic Filler & Capper: Precision Packaging System for Viscous Fluids
  • YIMUPACK YMF4C1 Integrated Automatic Filler & Capper: Precision Packaging System for Viscous Fluids
YIMUPACK YMF4C1 Integrated Automatic Filler & Capper: Precision Packaging System for Viscous Fluids

YIMUPACK YMF4C1 Integrated Automatic Filler & Capper: Precision Packaging System for Viscous Fluids

Λεπτομέρειες για το προϊόν
Επισημαίνω:

automatic filler capper for viscous fluids

,

integrated packaging system with capper

,

precision automatic labeling machine

Περιγραφή του προϊόντος
YIMUPACK YMF4C1 Integrated Automatic Filler & Capper: Precision Packaging System for Viscous Fluids
Product Overview

Engineered for scalable production environments, the YIMUPACK YMF4C1 is a fully automated integrated filling and capping solution tailored for medium-to-large output lines. It specializes in 10–1000ml packaging of oils, juices, and high-viscosity fluids (ketchup, chilli sauce). Featuring a 4-nozzle piston pump system, PLC management, and adaptable capping heads, it achieves >99.5% filling precision and >99.9% capping accuracy—optimized for food, beverage, daily chemical, and chemical sectors requiring streamlined packaging of glass/plastic bottles and jars. This system consolidates automatic filling, cap feeding, and capping into a unified workflow, delivering high throughput, broad adaptability, and resilient performance across multi-product manufacturing operations.

Core Value Proposition
4-nozzle piston pump configuration Elevates throughput by threefold versus single-nozzle units; processes viscous liquids without blockages
>99.5% filling + >99.9% capping accuracy Minimizes material loss and rejects; satisfies rigorous volume/closure standards
Full automation (filling + cap feeding + capping) Removes manual handling; substitutes 4–5 personnel; reduces annual labor expenses by 60%+
Broad adaptability (materials + containers + caps) Addresses 95%+ standard packaging cases; avoids multiple specialized machines, cutting capital expenditure
Customizable voltage + capping heads Adapts to global power standards and production demands (e.g., 6-nozzle expansion for higher capacity)
Basic Specifications
Product Name YIMUPACK YMF4C1 Automatic Filling & Capping Machine (Glass/Plastic Bottles/Jars; Viscous Liquids)
Brand/Model YIMUPACK / YMF4C1
Origin Shanghai, China
Power Configuration Electric (220V/380V/415V, customizable to regional standards)
Automation Level Fully automatic
Applicable Materials Oil, juice, high-viscosity liquids (ketchup, chilli sauce, peanut butter)
Applicable Containers Glass bottles, plastic bottles, jars (bottle diameter: 30–100 mm)
Applicable Caps Plastic/metal caps (cap diameter: 28–88 mm)
Core Components Motor, Piston Pump, PLC (Programmable Logic Controller), Capping Head
Dimensions & Weight 250010002000 mm; Net/Gross Weight: 650 kg
Warranty & After-Sales 2-year warranty; video/online technical support, spare parts supply
Quality Verification Machinery test report; video outgoing-inspection; TüVRheinland certified
Core Technical Parameters
Filling System 4-nozzle Piston Pump High precision for viscous fluids; prevents blockages versus standard pumps
Filling Volume 10–1000 ml Supports small (10ml essence) to medium (1000ml sauce) packaging requirements
Filling Speed 25–35 bottles/min (varies by viscosity/bottle size) Aligns with medium-to-large output lines; achieves up to 2100 bottles/hour
Filling Accuracy >99.5% Guarantees consistent fill levels; curbs overfilling/underfilling waste
Capping System 1 capping head (customizable to multiple heads) Scales with production needs; >99.9% accuracy minimizes cap damage
Machinery Capacity (Variant) 2000 BPH (Bottles Per Hour) Meets industrial throughput demands
Power Consumption 2000 W Energy-efficient for uninterrupted 24/7 operation
Key Benefits
3.1 Precision Multi-Nozzle Filling Four piston pump nozzles operate concurrently, achieving >99.5% fill accuracy—optimized for viscous media (ketchup, chilli sauce) prone to clogging conventional systems. Broad dosage range (10–1000ml) enables multi-SKU production without complex recalibration.
3.2 Gentle High-Accuracy Capping Single capping head (expandable to multiple units) maintains >99.9% accuracy while minimizing cap deformation. Compatible with plastic and metal caps (28–88mm diameter), reducing manual adjustments during cap type transitions.
3.3 Labor-Efficient Automation Unifies automatic filling, cap feeding, and capping into a continuous flow—eliminating post-startup manual intervention. Ideal for medium-to-large lines, enhancing efficiency by 50% compared to standalone filling/capping equipment.
3.4 Cross-Industry Adaptability Accommodates varied container materials (glass/plastic) and sizes (30–100mm diameter), plus fluids of differing viscosities (oil, juice, thick sauces). Serves cross-sector requirements (food, beverage, daily chemicals, low-corrosive chemicals) without specialized modifications.
Applicable Scenarios
Food Industry Ketchup, chilli sauce, peanut butter, edible oil (10–1000ml bottles/jars)
Beverage Industry Fruit juice, vegetable juice, syrup, functional drinks
Daily Chemicals Liquid detergent, hand sanitizer, hair care products (plastic bottles)
Chemical Industry Low-corrosive liquid reagents (small glass jars)
Packaging & Delivery
Order Quantity (Sets) Lead Time (Days)
1 20
2 – 3 30
＞ 3 Negotiable
Packaging Material Export-standard wood (shock-proof)
Package Size 250120220 cm
Gross Weight 650 kg
Selling Unit Single item
Customization Services
Logo Customization Print brand logo on machine body/operation panel 1 set
Packaging Customization Tailor brand-colored export wooden cases 1 set
Graphic Customization Multi-language operation interface (for global use) 1 set
Functional Customization Adjust number of filling/capping heads (e.g., upgrade to 6 filling heads) 1 set
Supplier Profile
Business Background Custom manufacturer integrating R&D, production, after-sales (founded 2016)
Scale 888㎡ factory; 26 total staff
Quality Control Drawing/sample-based customization, raw material traceability, 1 dedicated QA/QC inspector; TüVRheinland certified
Core Capabilities Full customization of filling & capping systems; specialization in high-precision viscous liquid packaging

Seeking to enhance your integrated filling and capping process? I can develop a custom parameter reference table matched to your liquid viscosity (e.g., ketchup/oil), container dimensions (30–100mm diameter), and target fill volume (10–1000ml), guaranteeing >99.5% accuracy and optimized throughput. Shall we proceed?
