YIMU YM120 Desktop Pneumatic Labeler: Semi-Automatic Precision for Flat Surface Applications
  • YIMU YM120 Desktop Pneumatic Labeler: Semi-Automatic Precision for Flat Surface Applications
YIMU YM120 Desktop Pneumatic Labeler: Semi-Automatic Precision for Flat Surface Applications

YIMU YM120 Desktop Pneumatic Labeler: Semi-Automatic Precision for Flat Surface Applications

Λεπτομέρειες για το προϊόν
Επισημαίνω:

semi-automatic desktop labeler

,

pneumatic flat surface labeler

,

YM120 precision labeling machine

Περιγραφή του προϊόντος
YIMU YM120 Desktop Pneumatic Labeler: Semi-Automatic Precision for Flat Surface Applications
1. Product Summary

The YIMU YM120 is a semi-automatic, desktop label applicator powered by pneumatic technology, specifically engineered for precision labeling on flat surfaces. It is suitable for a variety of items including flat bottles, paper boxes, packaging cartons, and metal plates. Incorporating pneumatic vacuum labeling technology and foot pedal control within a compact design (735 * 310 * 560 mm), this machine achieves a high labeling accuracy of ±1 mm at speeds of 25 to 50 PCS/min. It is an optimal solution for small factories, laboratories, and retail backrooms with limited space and small to medium batch production requirements.

This model is distinguished by its pneumatic drive system, offering a combination of straightforward operation, broad compatibility, and a 2-year warranty. It can be customized to accommodate global voltage standards (220V/110V) and diverse label and container specifications.

1.1 Key Value Proposition
Advantage
Practical Benefit
Pneumatic vacuum labeling technology
Guarantees stable label pick-up and application, preventing wrinkles and misalignment, especially for thin or irregular labels.
Hands-free foot pedal control
Allows operators to use both hands for product handling, significantly improving coordination and efficiency.
Compact desktop design (50 kg)
Occupies minimal space, saving approximately 85% of the area required by industrial models, ideal for tight workspaces.

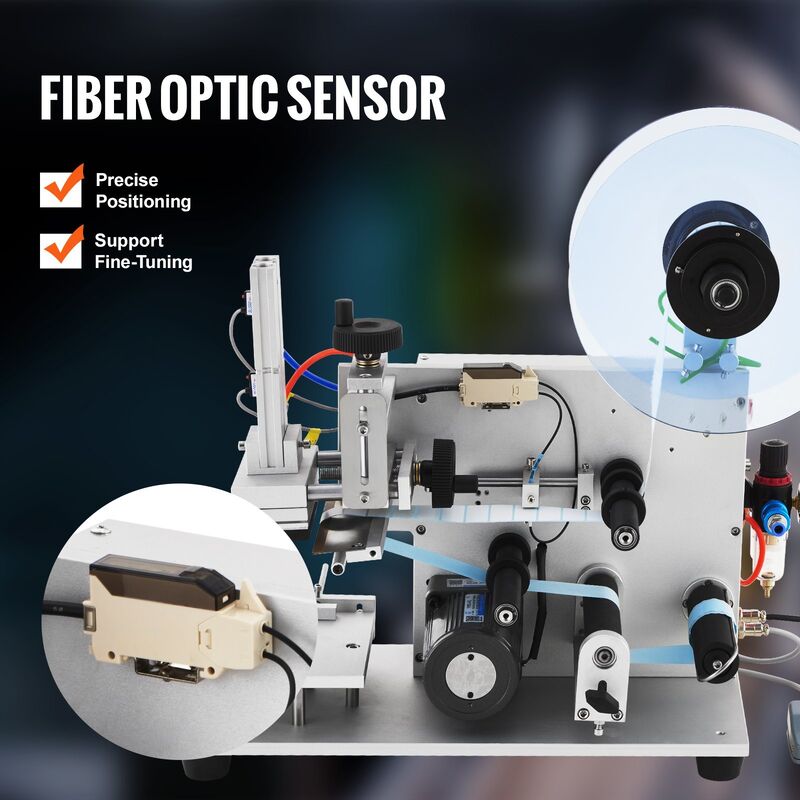

±1 mm precision with photoelectric positioning
Ensures consistent, high-quality label placement, reducing the defect rate for a professional finish.
2-year warranty with global power adaptation
Lowers long-term maintenance risks and ensures compatibility with international electrical requirements.
1.2 Basic Product Specifications
Specification Category
Detail
Product Designation
YIMU YM120 Desktop Pneumatic Label Applicator (Semi-Automatic for Flat Surfaces)
Brand & Model
YIMUPACK / YM120
Country of Origin
Shanghai, China
Drive Mechanism
Pneumatic (primary); Electric auxiliary (220V 50Hz/110V 60Hz customizable)
Level of Automation
Semi-automatic
Applicable Objects
Items with flat surfaces: bottles, boxes, cartons, plates
Machine Dimensions & Weight
735 * 310 * 560 mm; Net/Gross Weight: 50 kg
Primary Components
PLC (Programmable Logic Controller), Motor, Pneumatic Vacuum System
Construction Material
Industrial-grade, corrosion-resistant materials (consistent with brand standards)
Warranty & Support
2-year warranty; video/online support; spare parts availability post-warranty
Certifications & Patents
CE, ISO 9001; holds utility model patents
2. Technical Parameters
Parameter
Specification
Operational Implication
Labeling Speed Range
25–50 PCS/min (maximum 50 PCS/min)
Supports daily production volumes between 1,500 and 3,000 units for small batches.
Labeling Precision
±1 mm
Meets stringent requirements for brand presentation and basic regulatory compliance.
Compatible Label Dimensions
Length: 15–300 mm; Width: 5–200 mm
Accommodates a wide range of small to medium-sized flat labels.
Label Roll Core Diameter
75–300 mm
Compatible with various standard label roll sizes, minimizing changeover frequency.
Power Consumption
Standard: 80 W; Optional: 200 W
Energy-efficient base operation with an optional upgrade for enhanced performance.
Control Method
Foot pedal switch
Enables hands-free operation, improving workflow efficiency and operator coordination.
3. Key Features and Benefits
3.1 Advanced Pneumatic Labeling
Aspect
Description
Technology
Uses negative pressure vacuum for stable and precise label application.
System Protection
Integrated filter barometer removes impurities, protecting components and extending service life.
3.2 Ergonomic Operation
Aspect
Description
Control
Foot pedal operation frees hands for product handling, simplifying the workflow.
Usability
Intuitive design requires no specialized skills, allowing for quick operator training.
3.3 Space Efficiency
Aspect
Description
Footprint
Compact desktop dimensions allow placement on standard workbenches.
Installation
No dedicated installation space or complex setup required.
3.4 Versatile Compatibility
Aspect
Description
Surfaces
Handles a diverse range of flat-surface items from bottles to metal plates.
Labels & Rolls
Supports a broad spectrum of label sizes and roll inner diameters.
4. Applicable Scenarios
Industry
Typical Product Examples
Pharmaceuticals
Flat medicine bottles, medical device packaging boxes.
Food & Beverage
Flat condiment bottles, snack packaging boxes.
Cosmetics
Flat skincare bottles, perfume sample boxes.
Daily Chemicals
Flat detergent bottles, cleaning product packaging.
5. Packaging and Delivery Details
Order Quantity (Sets)
Production Lead Time (Days)
1 – 3
15
> 3
Negotiable
Packaging Detail
Specification
Packaging Material
Export-standard wood (moisture-proof and shock-proof).
Package Size
60 * 50 * 50 cm.
Gross Weight
50 kg.
Selling Unit
Single item.
6. Customization Services (MOQ: 1 Set)
Customization Type
Details
Logo Customization
Printing customer's brand logo on the machine body or operation panel.
Graphic Customization
Customizing the control system display language and operation icons.
Packaging Customization
Tailoring shipping boxes to brand colors and adding protective layers.
7. Supplier Profile
Strength
Details
Business Experience
Custom manufacturer with 15 years of experience in packaging machinery.
Company Scale
35+ employees, including a team of 10-20 senior engineers.
Quality Assurance
CE and ISO 9001 certified; holds multiple utility model patents.
Market Reach
Exports globally; maintains a high customer satisfaction rate.
Core Services
Provides OEM/ODM services, including production line design support.
